Available in 2-3 weeks, please contact us to find out more

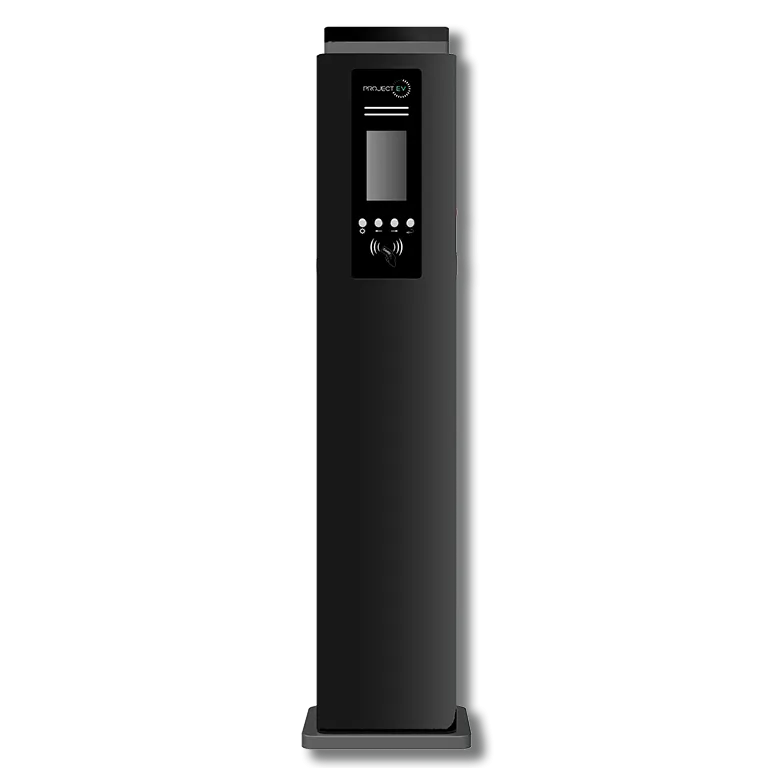

Project EV EVA-07D-SE-RFID 7.3kW Pro Earth Floor AC Electric Vehicle Charger Dual Gun RFID (63A Single Phase)

The EVA-07D-SE-RFID is a single-phase dual AC charging unit, packed with features, such as a no earth spike required installation. The dual gun charger is perfect for both domestic and commercial use with a market-leading five-year warranty.

This charger also has time shifting capabilities giving you the opportunity to save £100’s per year*, a cable lock system for added security, free mobile monitoring app, and a dynamic load balancing system.

The EVA-07D-SE-RFID is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional ground mounts (EV-GMEVA-D-2) & optional protection posts (EV-POST2) are available to purchase.

METHODS OF CONTROL

Plug & Charge - Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.

RFID - RFID Mode Charging is an easy simple way for uses to control their EV Charge Point with a swipe of a card. One RFID card is supplied as standard, however extra cards can be supplied for those interested in public charging.

Project EV App - The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.

Project EV Pro App - The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers - from which you can generate a fluid revenue stream.

Features:

• Input Amps: 63a Single Phase
• Input voltage: 230V AC
• Input frequency: 50HZ
• Output voltage: 230V AC
• Max. output power: 7KW per socket
• Max. output current: 32A per socket
• Charging interface type: IEC 62196-2, Type 2.
• Ethernet/WIFI/4G: Yes/Yes/Opt
• Outlet Type: Type 2 (socket)
• RCBO: Type A 6mA DC fault current protection (Equivalent to Type B)
• Number of outlets: 2
• RFID: Yes
• Protection degree: IP65.
• Grount-mounting: Opt. EV-GMEVA-D-2

Data Sheet:

Brochure:
