SPECIAL ORDER ITEM: 8-10 week Lead Time, please contact us to find out more

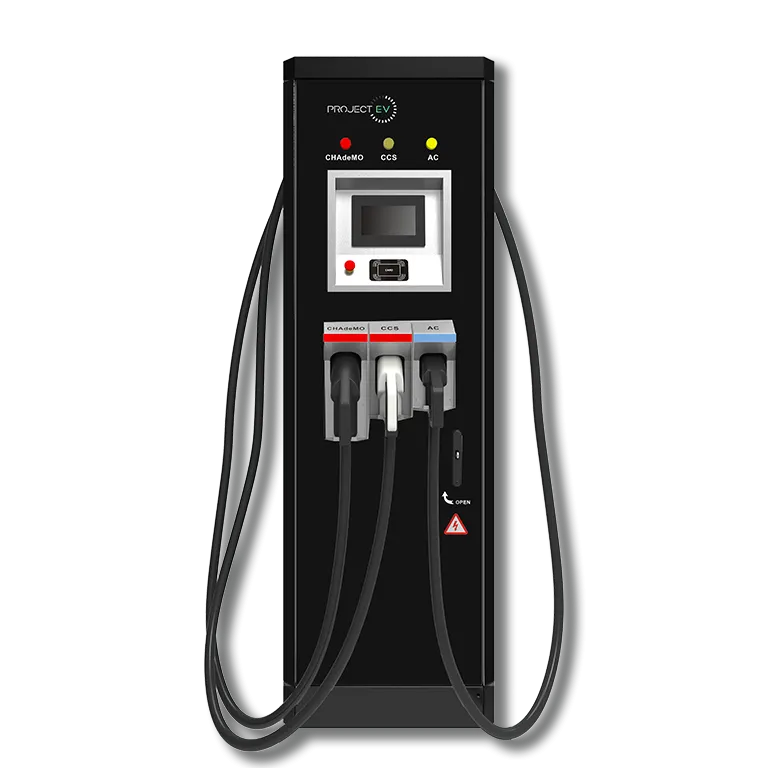

Project EV EVC-AC22S/DC60D 22kW AC /60kW DC Floor Electric Vehicle Charger Three Gun RFID [Type 2/CCS/CCS]

The EVC-AC22S-DC60D is a three-phase, commercial DC charging unit, featuring two CCS connections, and a 22kW AC Type 2 connection.

With it’s high power, it’s an ideal commercial charging unit that is also compatible with our bespoke app, allowing for easy fleet and cost management - as well as being able to manage load balancing for larger scale charging across multiple vehicles.

The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional EV charging signage (EV-SIGN1) & optional protection posts (EV-POST2) are available to purchase.

METHODS OF CONTROL

Plug & Charge - Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.

RFID - RFID Mode Charging is an easy simple way for uses to control their EV Charge Point with a swipe of a card. One RFID card is supplied as standard, however extra cards can be supplied for those interested in public charging.

Project EV App - The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.

Project EV Pro App - The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers - from which you can generate a fluid revenue stream.

Features:

• Input Amps: 119A Three Phase
• Input voltage: 260~530V AC
• Input frequency: 50/60HZ
• AC outlet type: Type 2 (tethered)
• AC output voltage: 400V AC
• AC max. output power: 22kW
• AC max. output current: 32A
• DC outlet type: CCS x2
• Output voltage: (CCS) 150-750V DC x2
• Max. output power: 60KW
• Max. output current: (CCS) 150A DC
• Cable Length: 5m
• Display: 7 inch screen
• Ethernet/WIFI/4G: Yes/Yes/Opt
• RCBO: Type A 6mA DC fault current protection (Equivalent to Type B)
• RFID: Yes
• Protection degree: IP54
• Floor-mounting: Standard

Data Sheet:

Brochure:
